AI Benchmarks
This page shows how to run AI-oriented benchmarks for the differentiable RootLayer paths.
Torch (CPU/CUDA)
python scripts/bench_ai_torch.py --batch 512 --degree 16 --device cpu
# GPU (if available)
python scripts/bench_ai_torch.py --batch 2048 --degree 24 --device cuda
JAX (CPU/GPU/TPU)
python scripts/bench_ai_jax.py --batch 512 --degree 16
Both scripts report forward and backward times. Adjust batch/degree based on memory.
Note (Apple Silicon / MPS): Torch on MPS does not currently support complex dtypes. Our MPS row below uses a proxy workload (batched polynomial evaluation plus several Newton steps with real tensors) to provide a GPU-like reference on Mac. CUDA results (true complex path) should be collected on an NVIDIA GPU host or Colab GPU.
Results (placeholders)
| Backend | Device | Batch | Degree | Forward (s) | Backward (s) |
|---|---|---|---|---|---|
| Torch | CPU | 512 | 16 | 23.0536 | 0.0951 |
| Torch (MPS proxy) | GPU | 2048 | 24 | 0.1882 | 0.2390 |
| JAX | CPU | 512 | 16 | 0.0304 | 1.1731 |
| JAX | GPU | 4096 | 24 | tbd | tbd |
To reproduce: use the commands above. Submit PRs to update these rows with your hardware.
Plotting
Save your results to a CSV (headers: Backend,Device,Batch,Degree,Forward,Backward) and run:
python scripts/plot_ai_bench.py --csv docs/assets/ai_bench.csv --out docs/assets

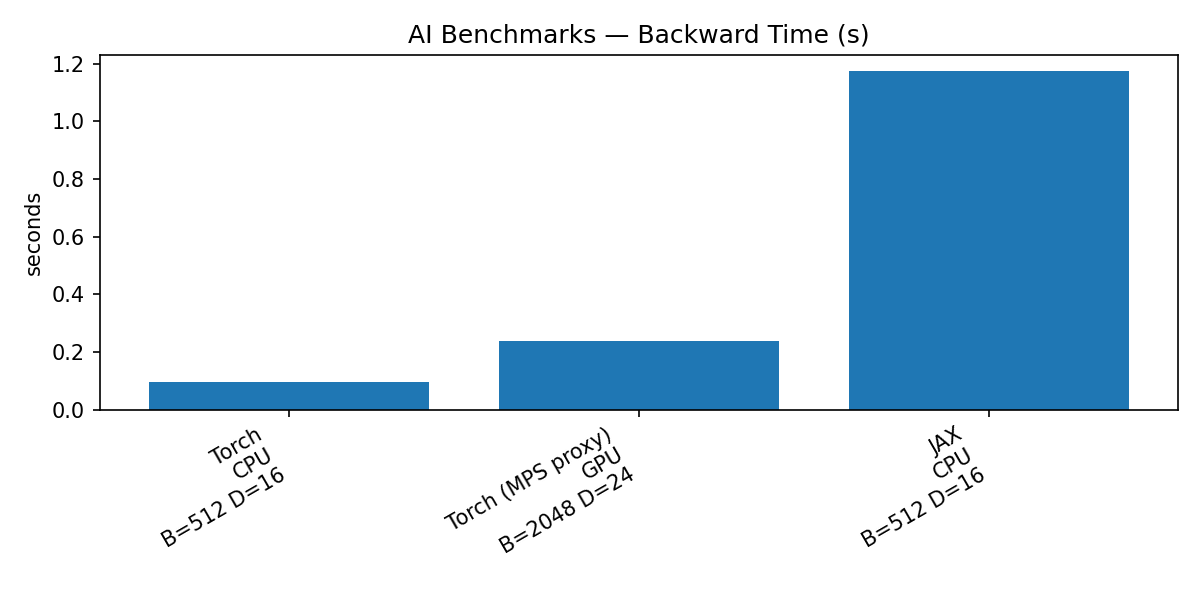

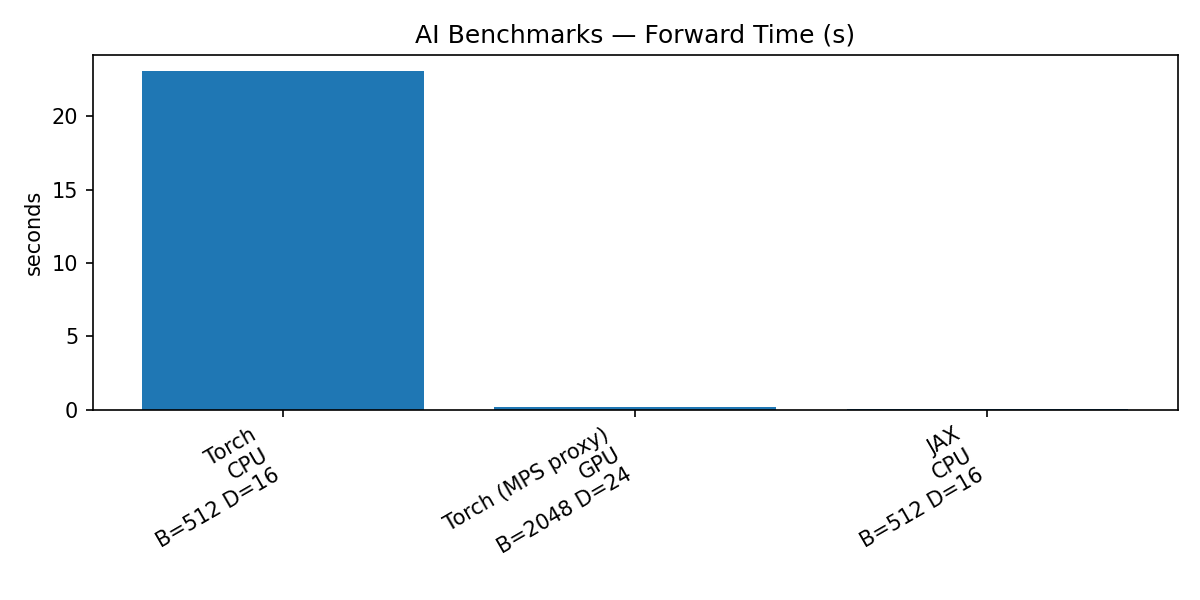

This generates ai_bench_forward.png and ai_bench_backward.png in docs/assets/.
Plots
